Polinovel

12V 80Ah Lithium Battery LiFePO4 HD Series

12V 80Ah Lithium Battery LiFePO4 HD Series

£375.00
£499.17 £375.00
Sale Sold out
Shipping calculated at checkout.
BMS

HD1280(100)

Out of stock
View full details

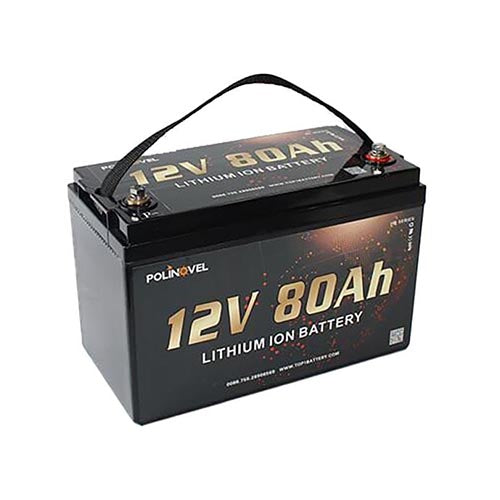

12V 80AH LiFePO4 Lithium Battery (HD)

Model HD1280 perfect to use as a light weight trolling motor battery for Bison electric outboards.

◆ Longer life compare to lead acid battery

◆ Up to 60% weight saving

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed

OVERVIEW

Polinovel's HD series LiFePO4 lithium batteries are constructed with the best manufacturing techniques. Each LiFePO4 battery has an internal battery management system (BMS) that protects the battery against over charge, over discharge, short circuit, and high temperature. HD series LiFePO4 battery is truly maintenance free ad will last several years. Better to be applied in boat, RV, vans, motorhome etc tougher operation environment.

FEATURES

HD series lithium battery using lifepo4 battery cells offer the following advantages:

◆ Longer life compare to lead acid battery

◆ Up to 60% weight saving

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed

INTERNAL STRUCTURE

Every detail of the design and construction of our lithium battery packs is carefully planned and tested to ensure that you get the safest and most durable battery possible.



SPECIFICATIONS

Items Parameter
Battery Type LiFePO4
Nominal Voltage 12.8V
Nominal Capacity 80Ah
Energy 1.024KWh
Internal Resistance ≤20mΩ
Series & Parallel Application up to 4 series 4 parallel connected application
Limited Charge Voltage 14.6±0.2V
Floating Charge Voltage 13.8±0.2V
Charge Method CC/CV
Discharge Cut-off Voltage 10.0V
Standard Charge Current 20A (Max charge current 50A)
Max. Continuous Discharge Current 100A
Pulse Discharge Current (<5s) 200-400A
Cycle Life > 2000 cycles
Dimension Length: 329±2mm
Width: 172±2mm
Height: 214±2mm
Weight 12±0.2Kg
Operation Temperature Range Charge: 0~45℃;
Discharge: -20~60℃
Recommended operating temperature: 15℃~35℃
Self-Discharge Rate Residual capacity: ≤3%/month; ≤15%/years
Reversible capacity: ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range Less than 1 month: -20℃~35℃, 45%RH~75%RH
Less than 3 months: -10℃~35℃, 45%RH~75%RH
Recommended storage environment: 15℃~35℃，45%RH~75%RH



Quality standards:

CE marked tested to EU Council Directive 2014/30/EU Electromagnetic Compatibility

Test std.  EN 61000-6-3: 2007+A1: 2011 EN 61000-6-1: 2007.

BMS

The BMS helps to ensure safe and accurate running.

◆ Over-Charging

◆ Over-Discharging

◆ Over-Current

◆ High Temperature

◆ Short Circuit

◆ Thermal Shock

◆ No Fires
