12V 100Ah Blue. Max 100Amp continuous current BMS.

£595.00 £650.00

Quantity

12V 100Ah Blue. Max 100Amp continuous current BMS.

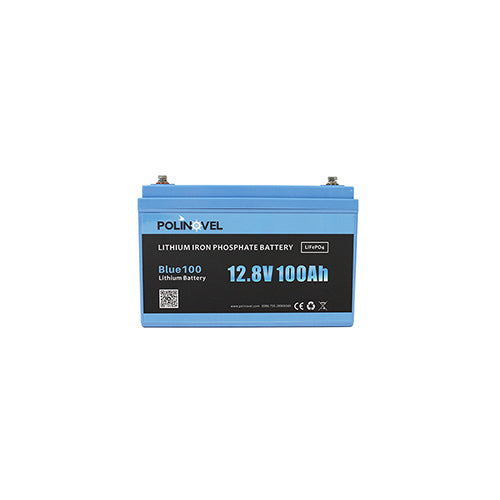

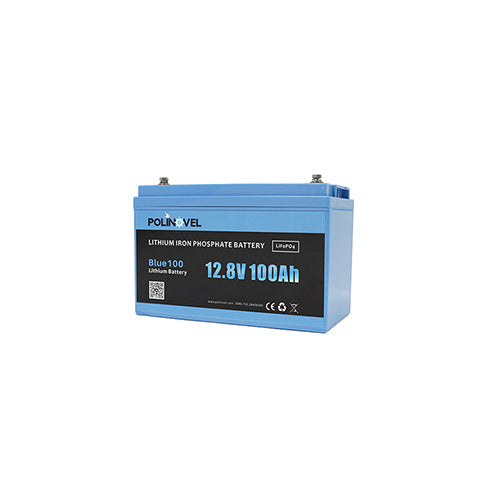

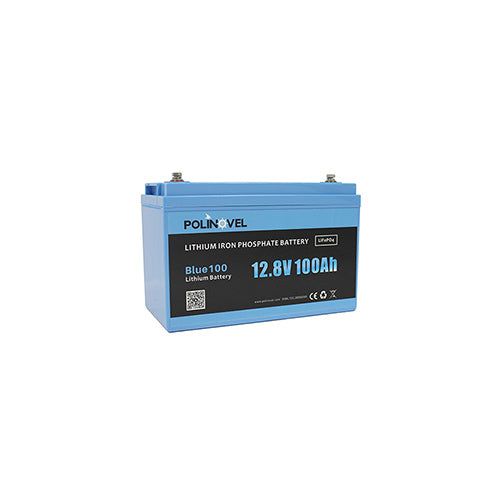

Blue100 12V 100Ah Lithium Battery

The 12V 100Ah HD BLUE battery is Polinovels new lower priced 100Ah Lithium Iron Phosphate battery.   The HD Blue battery is a variation of the incredible HD 12V 100Ah battery.  Designed to offer a lower price than the std HD, yet still built to an extremely high standard.  For users who are looking for a good compromise between quality and budget, the HD Blue is built to outcompete with a high specification  other lower price lithium batteries.

Polinovel have  produced this most popular size battery that keeps the essential safety of the Heavy Duty HD Series  yet built to a lower price point.  For those working to a  budget who dont need the extremely over engineered HD series for their application, the Blue series offers an excellant quality battery at a more competitive price.  The same brand new cells are used with the same BMS maximum current specification of 100Amps. The Blue series is designed for use in less demanding applications, recomended to have a  std charge current of 20 amps. and a discharge current recomended to be



  • High cost-effective lithium battery with 2 years warranty
  • Fast delivery within 2 weeks after order confirm

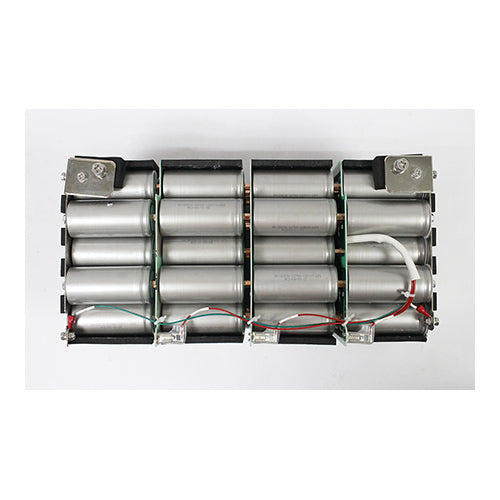

  • 100% brand new lithium iron phosphate battery cells
  • High standards production from the inside out to ensure reliable power
  • Support maximum 4pcs connection in series or parallel to expend energy
  • Offering 2 years warranty and permanent after-sale service

   The Blue100 leisure 12v 100ah lithium battery is an affordable, effective option for those devices that you  want to power. It measures 329 mm*172 mm*214mm, weighs 14 kg and is protected by a reinforced plastic housing and a 2 year warranty. It is rather well-designed and is built to take a beating from bumps or vibrations. Plus, it can also be used in the fishing boat, trolling motor, kayak and marine yacht. Its advantage against the competition is its ability to take more recharges, is more durable and a higher safety standard than most other batteries, Especially at this price point.



ELECTRICAL SPECIFICATIONS
Model Blue100
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Energy 1280Wh
Self Discharge <3%/month
Maximum Modules in Series or Parallel 4
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H) 329 x 172 x 214 mm (13 x 6.8 x 8.4”)
Weight 14kg (30.9 lbs)
Terminal Type M8
Case Material ABS
Enclosure Protection IP56
Cell Type Cylindrical
Chemistry LiFePO4
CHARGE SPECIFICATIONS
Recommended Charge Current 20A-50A
Maximum Charge Current 100A
Charge Current (0 to -10 ºC) ≤0.1C
Charge Current (-20 to -10 ºC) ≤0.05C
Recommended Charge Voltage 14.2V – 14.6V
BMS Charge Voltage Cut-Off 15.4V (3.85 ±0.025 vpc, 1~1.5s)
Reconnect Voltage 15.2V (3.8 ±0.05vpc)
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 100A
Peak Discharge Current 200A (<5s)
BMS Discharge Current Cut-Off 300A (±20A, 9±2ms)
Recommended Low Voltage Disconnect 10V
BMS Discharge Voltage Cut-Off 8V (2.0±0.05vpc, 120~180ms)
Reconnect Voltage 9.2V (2.3±0.1vpc)
TEMPERATURE SPECIFICATIONS
Discharge Temperature -20 to 60 ºC (-4 to 140 ºF)
Charge Temperature 0 to 45 ºC (32 to 113 ºF)
Storage Temperature (1 month) -20 to 60 ºC (-4 to 140 ºF)
Storage Temperature (3 months) -20 to 45 ºC (-4 to 113 ºF)
Storage Temperature (6 months) -20 to 25 ºC (-4 to 77 ºF)
COMPLIANCE SPECIFICATIONS
Certifications CE, UN38.3, MSDS
Shipping Classification UN 3480, CLASS 9
