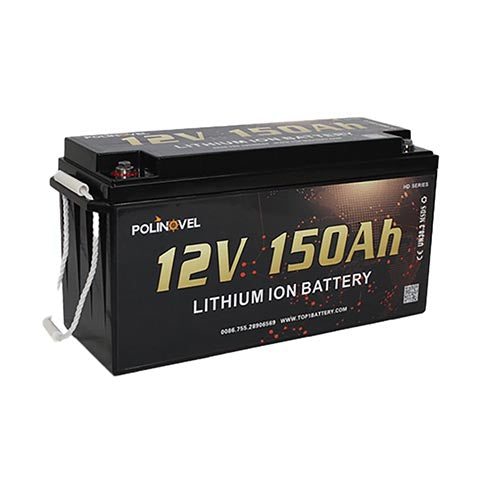

LiFePO4 HD Series Professional for high current (150Amp Continuous BMS) Lithium Battery 12V 150Ah

£1,115.00

Quantity
  • 12V 150Ah LiFePO4 Lithium Battery (HD) Professional High Current (150Amp Continuous drain BMS)

    HD series lithium battery using LiFePO4 battery cells offer the following advantages:

    ◆ Longer life compared to lead acid battery more than 2000 cycle life. 8 x average Lead acid life.

    ◆ Up to 60% weight saving compared to AGM

    ◆ 100% usable capacity (120Ah LiFePO4 approximately offers the same usable energy as a 190Ah Lead Acid battery) due to offering full voltage and current even when 80% discharged, compared to lead acid that typically only offers the required voltage at upto 50% discharged.

    ◆ More energy with 1/3 smaller size

    ◆ Less than 3% self discharging

    ◆ Built in safety protection

    ◆ Zero maintenance

    ◆ Easy installation

    ◆ Eco-friendly

    ◆ Quality guaranteed

    ◆ Fast charging, Charge at 30Amps in under 5 hours from flat with one of our high performance chargers.

  • Items Parameter
    Battery Type LiFePO4
    Nominal Voltage 12.8V
    Nominal Capacity 150Ah
    Energy 1.92KWh
    Internal Resistance ≤20mΩ
    Series & Parallel Application up to 4 series 4 parallel connected application
    Recommended Charge Voltage 14.6±0.2V
    Floating Charge Voltage 13.8±0.2V
    Charge Method CC/CV
    Discharge Cut-off Voltage 10.0V
    Standard Charge Current 30A
    Max. Continuous Discharge Current 150A
    Pulse Discharge Current (<5s) 200-400A
    Cycle Life >2000 cycles
    Dimension Length: 485±2mm
    Width: 170±2mm
    Height: 220±2mm
    Weight 20±0.2Kg
    Operation Temperature Range Charge: 0~45℃;
    Discharge: -20~60℃
    Recommended operating temperature: 15℃~35℃
    Self-Discharge Rate Residual capacity: ≤3%/month; ≤15%/years
    Reversible capacity: ≤1.5%/month; ≤8%/years
    Storage Temperature & Humidity Range Less than 1 month: -20℃~35℃, 45%RH~75%RH
    Less than 3 months: -10℃~35℃, 45%RH~75%RH
    Recommended storage environment: 15℃~35℃,45%RH~75%RH
  • Product Data Sheet
