LiFePO4 HD Series Professional for high current (160Amp Continuous BMS) Lithium Battery 12V 300Ah
- Variant: 160Amp Continuous load BMS
- SKU: HD12300(160)
- In Stock: 2
- Weight: 35.0 kg
- Product Type: Lithium Iron Phosphte (LiFePO4)
- Brand: Polinovel
- Collection:
Product Specs
LiFePO4 HD Series Professional for high current (160Amp Continuous BMS) Lithium Battery 12V 300Ah
LiFePO4 Lithium Battery: An Efficient Investment
Would you like a modern battery solution with high performance as an alternative to conventional AGM or lead acid batteries? Our range of lithium iron phosphate batteries, which come in 12v 100ah, 12v 200ah, right up to 12v 300ah rated capacity provide greater value for money due to their long-lasting and energy efficient nature.
For heavier duty usage and extreme current handling we would recommend this 12v 300Ah LiFePO4 (160Amp continuous BMS) version - this particular 12v battery will allow you to run more power hungry equipment than the std 100Amp BMS. You can unlock your true potential for adventure, with a continuous current handling of upto 1.9KW per battery in a parallel connection. Our LiFePO4 solution saves over 90Kg in weight of ‘dead lead’ compared to lead acid/ AGM batteries that would provide a similar amount of usable energy.
12V 300AH LiFePO4 Lithium Battery (HD) At a Glance
12V 300Ah LiFePO4 Lithium Battery (HD) Professional High Current (160Amp Continuous drain BMS)
Model HD12300(160)
- Longer life compare to lead acid battery
- Up to 60% weight saving
- 100% usable capacity
- More energy with 1/3 smaller size
- Less than 3% self-discharging
- Built-in safety protection
- Zero maintenance
- Easy installation
- Eco-friendly
- Quality guaranteed
Overview
Polinovel's HD series LiFePO4 lithium batteries are constructed with the best manufacturing techniques. Each LiFePO4 battery has an internal battery management system (BMS) that protects the battery against over charge, over discharge, short circuit, and high temperature. HD series LiFePO4 battery is truly maintenance free and will last many years.
The much higher discharge capacity Size for size means you won't have to constantly use your battery chargers, as it often the case with lead acid based units, that require a constant charge source to keep them topped up and able to operate anywhere close to their maximum life expectancy of 300-500 cycles.
Polinovel high capacity LiFePO4 batteries are best used in environments that require high power and tougher operation, such as deep cycle battery applications, boats, RVs, vans, motorhomes, off-grid appliances and much more.
Li-on battery (lithium ion battery packs), specifically the LiFePO4 variety, are also known for being better for the environment, compared to their lead acid battery counterparts. Due to the reduction of CO2 plastic and toxic lead and acid components. One lithium battery for equivalent energy usage over its lifetime can replace more than 16 traditional lead acid units.*
Internal Structure
Every detail of the design and construction of our lithium battery packs is carefully planned and tested to ensure that you get the safest and most durable battery possible.
Well-organized Structure (Cells, BMS, Cables) Dual Safe BMS, Steel Plate on Top & Screw Supported Overhead
Patented 32650 Cells with Steel Positive and Negative Columns Design. The Whole Battery Pack Adopts Screw Fastening Connection

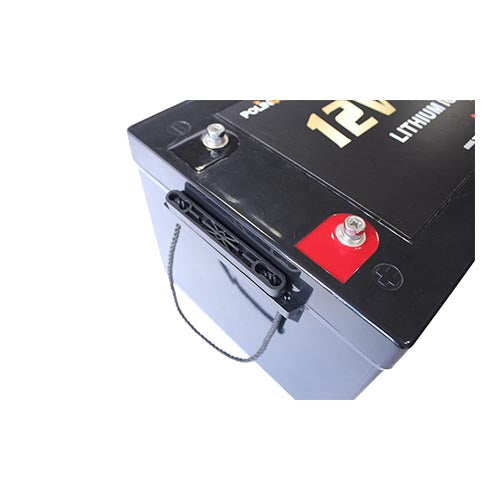

Tailored & Qualified Cable for Fast Charging and Discharging Pure Copper Terminals for High Current, Insulator Cap Protection
SPECIFICATIONS
| Items | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 300Ah |
| Energy | 3.84KWh |
| Internal Resistance | ≤20mΩ |
| Series & Parallel Application | up to 4 series 4 parallel connected application |
| Limited Charge Voltage | 14.6±0.2V |
| Floating Charge Voltage | 13.8±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 10.0V |
| Standard Charge Current | 60A |
| Max. Continuous Discharge Current | 160A |
| Pulse Discharge Current (<5s) | 200A~400A |
| Cycle Life | > 2000 cycles warranty |
| Dimension | Length: 525±2mm |
| Width: 270±2mm | |
| Height: 220±2mm | |
| Weight | 35±0.2Kg |
| Operation Temperature Range | Charge: 0~45℃; |
| Discharge: -20~60℃ | |
| Recommended operating temperature: 15℃~35℃ | |
| Self-Discharge Rate | Residual capacity: ≤3%/month; ≤15%/years |
| Reversible capacity: ≤1.5%/month; ≤8%/years | |
| Storage Temperature & Humidity Range | Less than 1 month: -20℃~35℃, 45%RH~75%RH |
| Less than 3 months: -10℃~35℃, 45%RH~75%RH | |
| Recommended storage environment: 15℃~35℃，45%RH~75%RH |
Quality standards:
CE marked tested to EU Council Directive 2014/30/EU Electromagnetic Compatibility
Test std. EN 61000-6-3: 2007+A1: 2011 EN 61000-6-1: 2007.
Battery Management System
The BMS helps to ensure safe and accurate running. It also provides monitoring to prevent:
◆ Over-Charging
◆ Over-Discharging
◆ Over-Current
◆ High Temperature
◆ Short Circuit
◆ Thermal Shock
◆ No Fires
◆ No Explosions
Dimension Drawing
Polinovel HD Series lithium batteries are developed based on same battery case size that are perfect to replace conventional lead acid batteries.
Why Choose Quality Source?
- Efficient products – Our Lithium Batteries can last up to 6000 cycles if used in the 20-95% state of charge range.
- Expertise you can trust - We've been servicing clients across the UK and internationally for over 20 years, so we have experience of delivering for a variety of clients, including boat and motorhome hire companies to name just a few.
- Quality – We don’t sell ‘cheap’ batteries – we sell long-lasting and efficient products that allow you to make savings in the long term. You will be spending less on replacing them as often as other battery types, like lead acid batteries. And the increased performance LiFePO4 delivers will astound you!
