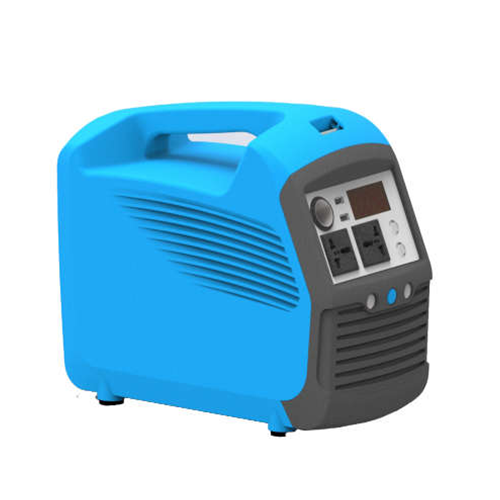

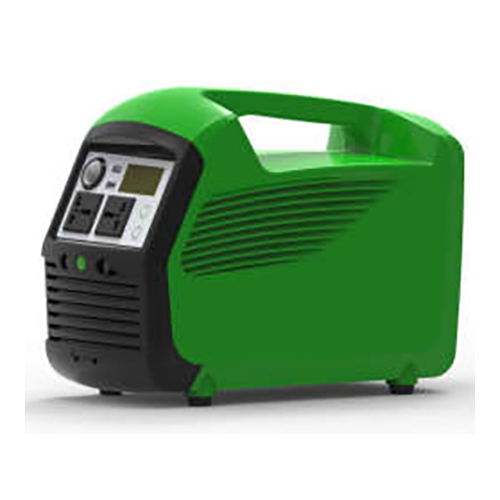

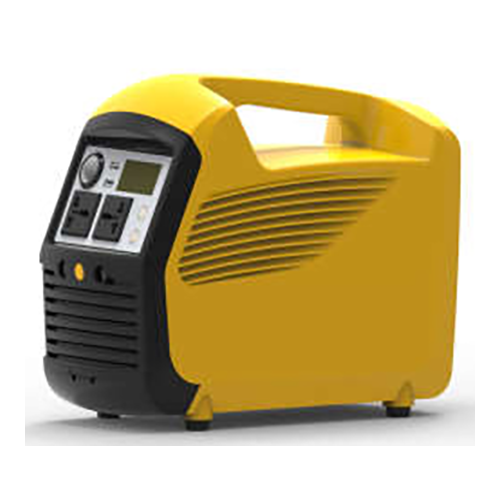

M2 Portable Power Supply

£1,290.00

Model
Quantity

M2 Portable Power Supply

Features:

1. Hand-held design, portable and convenient;

2. Transfer efficiency up to 92%;

3. Long battery life, can be used circularly 1000 times above;

4. Excellent high/low temperature operation;

5. Multiple charging mode: via solar, car charger, generator or mains grid power (optional);

6. Calculate application power automatically, show exactly battery time remaining.


Application:

Natural disaster, outdoor operation, refugee medical center, camping, fishing and other outdoor use



Model NO.

M2-052426

M2-102443

M2-152466

M2-204840

Continuous Output Power

500W

1000W

1500W

2000W

Peak Power

1000W

2000W

3000W

4000W

Battery Type

Lithium Battery

Battery Capacity

24V26AH

24V43AH

24V66AH

48V40AH

External DC Charging

DC25.2V4A

DC25.2V7A

DC25.2V10A

DC58.8V7A

Charging Time

6~7H

6~7H

6~7H

6~7H

Solar Charging

PWM (Optional)

Charging Current

5A

10A

20A

10A

Input Volt. Range

20~40V

20~40V

20~40V

40~65V

AC Output

220V/110V

Output Frequency

50/60Hz

Output Wave Form

Pure Sine Wave

DC Output

5V2A 12V10A 24V10A

Working Temp.

-15℃~50℃

Operation Humidity

RH45%~85%, Non-condensing

Protection Types

Over-charge, Over-discharge, Over temperature, Short circuit protection



Display Content

DC Voltage, DC Current, Battery Remaining Capacity, Active Power,

Remaining Time

Cooling

Fan Cooling( When internal temperature is over 65℃ )

Others

LED Light (1W)

Dimension(L*H*W)

370*290*178mm

370*290*178mm

370*290*178mm

370*290*178mm

Weight

5.2kg

7.8kg

10.2kg

12.8kg
