Polinovel

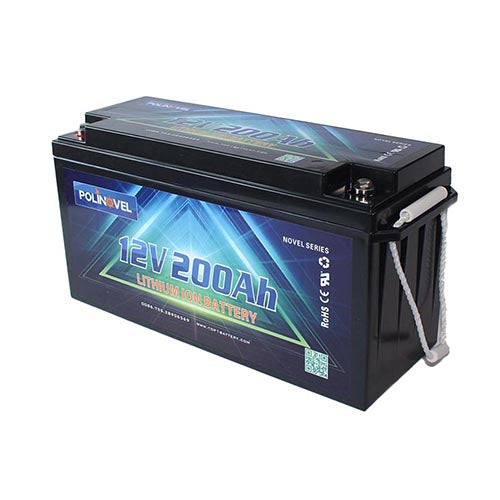

LiFePO4 battery Bluetooth Novel Series 12V 200Ah

Name: LiFePO4 battery Bluetooth Novel Series 12V 200Ah
Brand: Polinovel
SKU: NOVEL12200
Price: 900.00 GBP
Availability: InStock
Rating: 4.9 (19 reviews)

£900.00

~~£1,250.00~~ £900.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

SKU:NOVEL12200

Low stock: 2 left

Quantity

View full details

Description
Specification
Downloads

Novel Series smart lithium battery LiFePO4 with Bluetooth communication function, through Android and IOS APP, users can easily monitor one or more batteries working status on a smart phone. Main Applications are for RV, Motorhome, Marine, Boat, classic & 2nd car, Solar System etc.

◆ Longer life compare to lead acid battery

◆ Up to 60% weight saving less than AGM

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging per month

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality Guaranteed

FEATURES:

● High energy density

● Low self discharge

● Light weight, small size

● Long cycle life

● High discharge rate

● Pollution-free

● High working voltage for single battery cell

● With short-circuit protection function, safe and reliable

● Good consistency at voltage, capacity, resistance and platform time

● Quality and security guaranteed with CE approval

BLUETOOTH

The lithium battery pack bluetooth function can monitor the following status from smart phone:

● Battery pack voltage

● Battery pack draw current

● Battery charge state

● Battery discharge state

● Battery cycles

● Battery temperature

● Designed capacity

● Remaining capacity

● Advanced Cell Voltage

App Display Screens:

Items	Parameter
Battery Type	LiFePO4
Nominal Voltage	12.8V
Nominal Capacity	200Ah
Energy	2.56KWh
Internal Resistance	≤15mΩ
Series & Parallel Application	up to 4 series 4 parallel connected application
Limited Charge Voltage	14.6±0.2V
Floating Charge Voltage	13.8±0.2V
Charge Method	CC/CV
Discharge Cut-off Voltage	10.0V
Standard Charge Current	60A
Max. Charge Current	80A
Standard Continuous Discharge Current	80A
Max. Continuous Discharge Current	200A
Pulse Discharge Current (<3s)	400Amps <5 seconds
Cycle Life	>2000 cycles @ 80% Depth of discharge
Dimension	Length: 485±2mm
	Width: 170±2mm
	Height: 245±2mm
Weight	25.5±0.2Kg
Operation Temperature Range	Charge: 0~45℃;
	Discharge: -20~60℃
	Recommended operating temperature: 15℃~35℃
Self-Discharge Rate	Residual capacity: ≤3%/month; ≤15%/years
Self-Discharge Rate	Reversible capacity: ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range	Less than 1 month: -20℃~35℃, 45%RH~75%RH
	Less than 3 months: -10℃~35℃, 45%RH~75%RH
	Recommended storage environment: 15℃~35℃，45%RH~75%

BMS Information:

Items	Content	Specification
Over Charge	Over-charge protection for each cell	3.9±0.03V
	Over-charge release for each cell	3.60±0.05V
	Over-charge release method	Under the release voltage
Over Discharge	Over-discharge protection for each cell	2.0±0.05V
	Over-discharge release for each cell	2.5±0.05V
	Over-discharge release method	Charge to recovery
Over Current	Over discharge current protection	300A~500A
	Protection delay time	50ms～400ms
	Over current release method	Delay about 8S after recovery
Short Circuit	Do not short-circuit the electrodes	Designed for 600A/1ms
Battery Temperature	Charge over temperature	Protection @ 65±5℃
	Charge over temperature	Release @ 50±5℃
	Discharge over temperature	Protection @ 65±5℃
	Discharge over temperature	Release @ 50±5℃
	MOSFET over temperature	Protection @ 103±10℃
	MOSFET over temperature	Release @ 75±10℃
