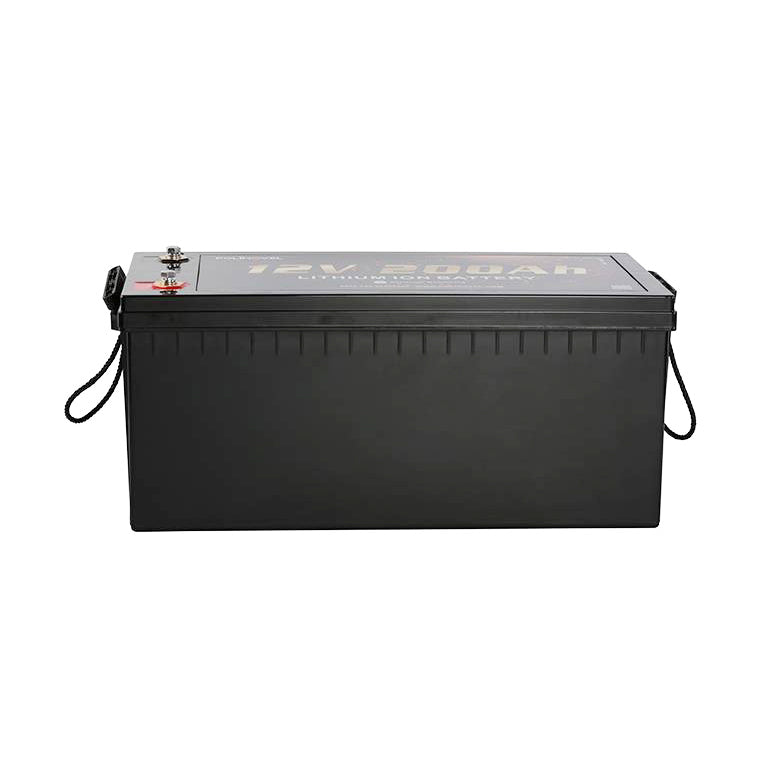

12V 200Ah LiFePO4 HT Series Bluetooth (150Amp BMS)

12V 200Ah LiFePO4 HT Series Bluetooth (150Amp BMS)

Regular price £650.00
Regular price £709.00 Sale price £650.00
Sale Sold out
Tax included. Shipping calculated at checkout.


6 in stock

View full details

12V 200Ah LiFePO4 Lithium Battery (HT) Professional High Current (150Amp Continuous drain BMS) WITH BLUETOOTH

The HT Series Professional are designed for High Usage applications and each 200Ah Battery can supply sufficient current handling to run a 2Kw inverter. You can put up to 4 batteries in Parallel to support up to a maximum of 8Kw progressive current handling. However we recommend that 5Kw would be a more reasonable system as some loads have a initial high start up current, respecting this allows some headroom to avoid any potential surges activating the BMS Over current protection. (Each battery has a pulse discharge of 320Amps for less than 5 seconds. with Perfect connections that would allow 4 batteries to tolerate a load of up to 1280 Amps! )

Some of our competitors so called 'high current' batteries have a maximum current handling BMS of 100Amps and a peak of 150Amps for 15 seconds. This HT Series is double that for pulse discharge and 60% more for std discharge. To find any performance close to this you need to be looking at Super B batteries and or Victron units that typically sell for 2-3 x the price of our HT model.

The HT battery is the same cylindrical cell Professional High Current battery but with Added BLUETOOTH connectivity to monitor state of charge, temperature, charge or discharge current etc.

Our professional high current batteries with 150-160Amp BMS* are designed and built to last, to deliver power above and beyond the capability of the lower cost models. This over engineering is why we have not seen problems with BMS Failure that is reported for some other manufacturers products, whose current handling is not sufficient for the demands placed upon batteries in typical situations with high load applications.

Deep cycle leisure battery that is ideally suited for use in motor homes, power boats, sailing craft, canal boats, caravans, RV’s, invalid carriages, personal mobility scooters, electric vehicles at 12V, 24V,36V,48V through series connections. Electric trolling motors. Mobile Electric lift trucks, Powered trolleys etc.

Model HT12200
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Energy 2560Wh
Self Discharge <3%/month
Maximum Modules in Series or Parallel 4
Dimensions (L x W x H) 520 x 240 x 220 mm (20.5 x 9.4 x 8.7”)
Weight 27.8kg (61 lbs)
Terminal Type M8
Case Material ABS
Enclosure Protection IP56
Cell Type Cylindrical
Chemistry LiFePO4
Recommended Charge Current 40A-100A
Maximum Charge Current 100A
Charge Current (0 to -10 ºC) ≤0.1C
Charge Current (-20 to -10 ºC) ≤0.05C
Recommended Charge Voltage 14.2V – 14.6V
BMS Charge Voltage Cut-Off 15.4V (3.85 ±0.025 vpc, 1~1.5s)
Reconnect Voltage 15V (3.75 ±0.05vpc) / 15.2V (3.8 ±0.05vpc)
Maximum Continuous Discharge Current 160A (or 100A)
Peak Discharge Current 320A/5s (or 200A/5s)
BMS Discharge Current Cut-Off 400A/9ms (300A/9ms)
Recommended Low Voltage Disconnect 10V
BMS Discharge Voltage Cut-Off 8V (2.0±0.05vpc, 120~180ms)
Reconnect Voltage 9.2V (2.3±0.1vpc)
Discharge Temperature -20 to 60 ºC (-4 to 140 ºF)
Charge Temperature 0 to 45 ºC (32 to 113 ºF)
Storage Temperature (1 month) -20 to 60 ºC (-4 to 140 ºF)
Storage Temperature (3 months) -20 to 45 ºC (-4 to 113 ºF)
Storage Temperature (6 months) -20 to 25 ºC (-4 to 77 ºF)
Certifications CE, UN38.3, MSDS
Shipping Classification UN 3480, CLASS 9

Bluetooth Smart Batteries
