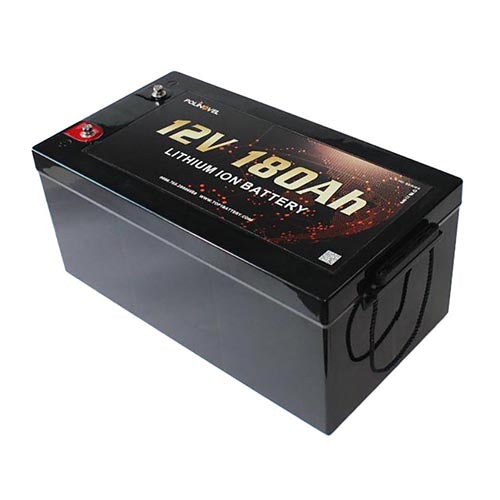

12V 180Ah Lithium Battery LiFePO4 HD Series

Name: 12V 180Ah Lithium Battery LiFePO4 HD Series
Brand: Polinovel
SKU: HD12180(100)
Price: 600.00 GBP
Availability: InStock

£600.00

~~£750.00~~ £600.00

Sale Sold out

Tax included. Shipping calculated at checkout.

BMS 100Amp Continuous load BMS

Product variants

SKU:HD12180(100)

Low stock: 2 left

Quantity

12V 180AH LiFePO4 Lithium Battery (HD)

Model HD12180

◆ Longer life compare to lead acid battery

◆ Up to 60% weight saving

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed

Items	Parameter
Battery Type	LiFePO4
Nominal Voltage	12.8V
Nominal Capacity	180Ah
Energy	2.304KWh
Internal Resistance	≤20mΩ
Series & Parallel Application	up to 4 series 4 parallel connected application
Limited Charge Voltage	14.6±0.2V
Floating Charge Voltage	13.8±0.2V
Charge Method	CC/CV
Discharge Cut-off Voltage	10.0V
Standard Charge Current	40A (Max charge current 80A)
Max. Continuous Discharge Current	100A
Pulse Discharge Current (<5s)	200A~400A
Cycle Life	> 2000 cycles
Dimension	Length: 485±2mm
	Width: 170±2mm
	Height: 220±2mm
Weight	23±0.2Kg
Operation Temperature Range	Charge: 0~45℃;
	Discharge: -20~60℃
	Recommended operating temperature: 15℃~35℃
Self-Discharge Rate	Residual capacity: ≤3%/month; ≤15%/years
Self-Discharge Rate	Reversible capacity: ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range	Less than 1 month: -20℃~35℃, 45%RH~75%RH
	Less than 3 months: -10℃~35℃, 45%RH~75%RH
	Recommended storage environment: 15℃~35℃，45%RH~75%RH
