HD Series Professional (160Amp Continuous BMS) Lithium Battery 12V 180Ah

HD Series Professional (160Amp Continuous BMS) Lithium Battery 12V 180Ah

Regular price £570.00
Regular price £750.00 Sale price £570.00
Sale Sold out
Tax included. Shipping calculated at checkout.
BMS

SKU:HD12180(160)

6 in stock

View full details

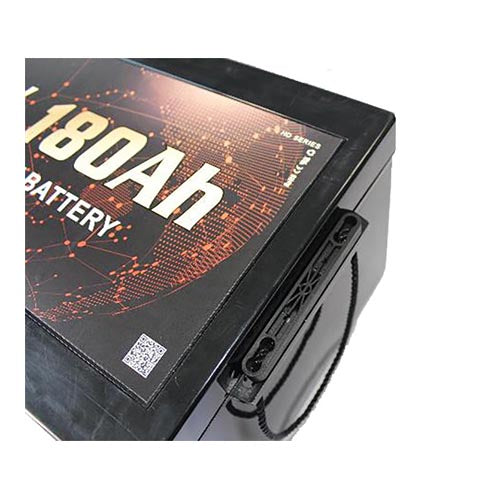

12V 180Ah LiFePO4 Lithium Battery (HD) Professional High Current (160Amp Continuous drain BMS)

◆ Longer life up to 8 x compared to a lead acid battery

◆ Up to 60% weight saving over an AGM

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging per month

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed

Items Parameter
Battery Type LiFePO4
Nominal Voltage 12.8V
Nominal Capacity 180Ah
Energy 2.304KWh
Internal Resistance ≤20mΩ
Series & Parallel Application up to 4 series 4 parallel connected application
Limited Charge Voltage 14.6±0.2V
Floating Charge Voltage 13.8±0.2V
Charge Method CC/CV
Discharge Cut-off Voltage 10.0V
Standard Charge Current 40A
Max. Continuous Discharge Current 160A
Pulse Discharge Current (<5s) 200A~400A
Cycle Life > 2000 cycles
Dimension Length: 485±2mm
Width: 170±2mm
Height: 220±2mm
Weight 23±0.2Kg
Operation Temperature Range Charge: 0~45℃;
Discharge: -20~60℃
Recommended operating temperature: 15℃~35℃
Self-Discharge Rate Residual capacity: ≤3%/month; ≤15%/years
Reversible capacity: ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range Less than 1 month: -20℃~35℃, 45%RH~75%RH
Less than 3 months: -10℃~35℃, 45%RH~75%RH
Recommended storage environment: 15℃~35℃,45%RH~75%RH
