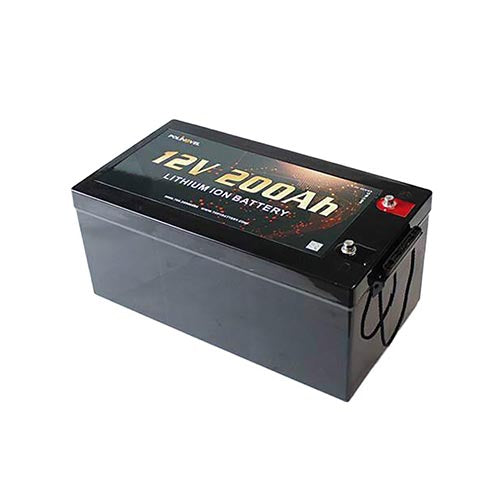

LiFePO4 HD Series Professional (160Amp Continuous BMS) Lithium Battery 12V 200Ah

Name: LiFePO4 HD Series Professional (160Amp Continuous BMS) Lithium Battery 12V 200Ah
Brand: Polinovel
SKU: HD12200(160)
Price: 550.00 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

£550.00

~~£700.00~~ £550.00

Sale Sold out

Tax included. Shipping calculated at checkout.

BMS 160Amp Continuous load BMS

Product variants

SKU:HD12200(160)

11 in stock

Quantity

View full details

Description
Specification
Downloads

12V 200Ah LiFePO4 Lithium Battery (HD) Professional High Current (160Amp Continuous drain BMS)

◆ Longer life compared to lead acid battery. more than 2000 cycle life. 8 x that of lead acid.

◆ Up to 60% weight saving compared to AGM

◆ 100% usable capacity (200Ah LifePO4 approximately offers the same usable energy as a 320Ah Lead Acid battery) due to offering full voltage and current even when 80% discharged, compared to lead acid that typically only offers the required voltage at upto 50% discharged.

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed

◆ Fast charging, Charge at upto 40Amps in under 5 hours from flat with one of our high performance chargers.

Items	Parameter
Battery Type	LiFePO4
Nominal Voltage	12.8V
Nominal Capacity	200Ah
Energy	2.56KWh
Internal Resistance	≤20mΩ
Series & Parallel Application	up to 4 series 4 parallel connected application
Limited Charge Voltage	14.6±0.2V
Floating Charge Voltage	13.8±0.2V
Charge Method	CC/CV
Discharge Cut-off Voltage	10.0V
Standard Charge Current	40A
Max. Continuous Discharge Current (<30min)	160A
Pulse Discharge Current (<5s)	200-400A
Cycle Life	>2000 cycles
Dimension	Length: 525±2mm
	Width: 270±2mm
	Height: 220±2mm
Weight	27±0.2Kg
Operation Temperature Range	Charge: 0~45℃;
	Discharge: -20~60℃
	Recommended operating temperature: 15℃~35℃
Self-Discharge Rate	Residual capacity: ≤3%/month; ≤15%/years
Self-Discharge Rate	Reversible capacity: ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range	Less than 1 month: -20℃~35℃, 45%RH~75%RH
	Less than 3 months: -10℃~35℃, 45%RH~75%RH
	Recommended storage environment: 15℃~35℃，45%RH~75%RH
