Model HD12300
Would you like a modern battery solution with high performance as an alternative to conventional AGM or lead acid batteries? Our range of lithium iron phosphate batteries, which come in 12v 100ah, 12v 200ah, right up to 12v 300ah output types provide greater value for money for a lower amount of maintenance due to their long-lasting and energy efficient nature.
For heavier duty off grid use, we would recommend this 12v 300ah LiFePO4 version - this particular 12v battery will allow you to go much further for longer, so you can be off grid and explore further than ever before in your camper van, RV or motorhome.

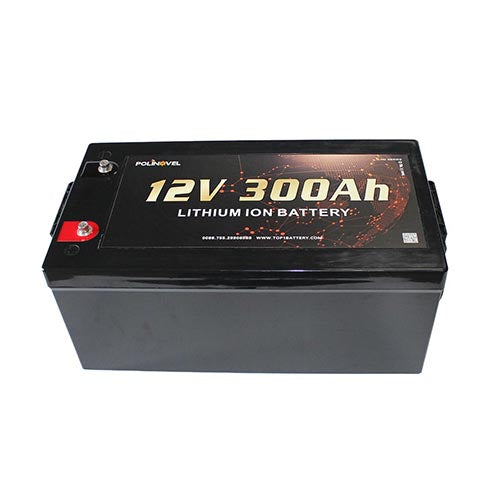

12V 300AH LiFePO4 Lithium Battery (HD) At a Glance
Model HD12300
- Longer life compare to lead acid battery
- Up to 60% weight saving
- 100% usable capacity
- More energy with 1/3 smaller size
- Less than 3% self-discharging
- Built-in safety protection
- Zero maintenance
- Easy installation
- Eco-friendly
- Quality guaranteed
Overview
Polinovel's HD series LiFePO4 lithium batteries are constructed with the best manufacturing techniques. Each LiFePO4 battery has an internal battery management system (BMS) that protects the battery against over charge, over discharge, short circuit, and high temperature. HD series LiFePO4 battery is truly maintenance free and will last several years.
You therefore won't have to constantly use your battery chargers, as it often the case with lead acid varieties.
These high capacity batteries are best used in environments that require high power and tougher operation, such as deep cycle battery applications, boats, RVs, vans, motorhomes, off-grid appliances and much more.
Li-on battery (lithium ion battery packs), specifically the LiFePO4 variety, are also known for being better for the environment, compared to their lead acid battery counterparts. Due to there incredible charge efficiency and ultra long life. The extremely low level of self discharge and not needing to be stored fully charged, means that wasteful 'float' charging is no longer required during periods of low usage. Finished for the season, just turn the loads off and forget about charging in 6 months less than 15% charge degredation.
Internal Structure
Every detail of the design and construction of our lithium battery packs is carefully planned and tested to ensure that you get the safest and most durable battery possible.
Well-organized Structure (Cells, BMS, Cables) Dual Safe BMS, Steel Plate on Top & Screw Supported Overhead
Patented 32650 Cells with Steel Positive and Negative Columns Design Whole Battery Pack Adopts Screw Fastening Connection
Tailored & Qualified Cable for Fast Charging and Discharging Pure Copper Terminals for High Current, Insulator Cap Protection
Items | Parameter |
Battery Type | LiFePO4 |
Nominal Voltage | 12.8V |
Nominal Capacity | 300Ah |
Energy | 3.84KWh |
Internal Resistance | ≤20mΩ |
Series & Parallel Application | up to 4 series 4 parallel connected application |
Limited Charge Voltage | 14.6±0.2V |
Floating Charge Voltage | 13.8±0.2V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 10.0V |
Standard Charge Current | 100A |
Max. Continuous Discharge Current | 100A (160A optional) |
Pulse Discharge Current (<5s) | 200A~400A |
Cycle Life | > 2000 cycles |
Dimension | Length: 525±2mm |
Width: 270±2mm | |
Height: 220±2mm | |
Weight | 35±0.2Kg |
Operation Temperature Range | Charge: 0~45℃; |
Discharge: -20~60℃ | |
Recommended operating temperature: 15℃~35℃ | |
Self-Discharge Rate | Residual capacity: ≤3%/month; ≤15%/years |
Reversible capacity: ≤1.5%/month; ≤8%/years | |
Storage Temperature & Humidity Range | Less than 1 month: -20℃~35℃, 45%RH~75%RH |
Less than 3 months: -10℃~35℃, 45%RH~75%RH | |
Recommended storage environment: 15℃~35℃,45%RH~75%RH |
