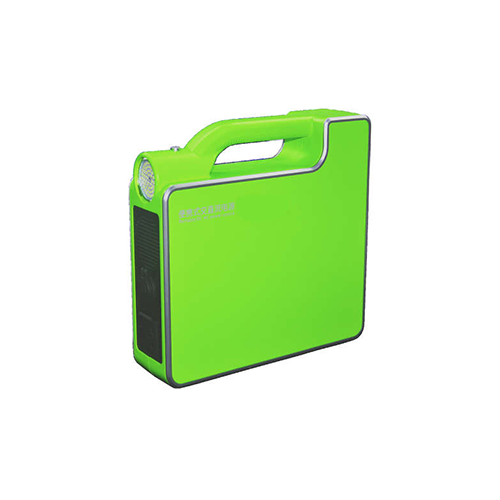

M1 Portable Power Supply

£577.00

Model
Quantity

M1 Portable Power Supply

The M Series power supply is currently unavailable. We apologise for any inconvenience.    Have you considered our M2 Models? these have more storage capacity  and higher  power handling  than the M1.



M series portable power generator is an off-grid emergency AC/DC power system with lithium battery storage and multiple function.

With imported lithium battery and inverter module, light weight, high capacity and large power, it can supply you portable convenient power solution.



Features:

  1. Hand-held design with light weight, portable and convenient;
  2. Transfer efficiency up to 92%;
  3. With UPS function, can charge and discharge at the same time;
  4. Long battery life, can be used circularly 800 times above;
  5. Excellent high/low temperature operation;
  6. Multiple charging mode: via solar, car charger, generator or mains grid power.



Application:

Emergency power supply, outdoor operation, refugee medical centre, camping, fishing and

other outdoor use.



Model NO.

M1-051253

M1-051226

Continuous Output Power

500W

300W

Peak Power

1000W

600W

Battery Type

Lithium Battery

Battery Capacity

12V53AH

12V26AH

External DC Charging

DC12.6V7A

DC12.6V5A

Charging Time

7~8H

4~5H

Solar Charging

PWM (Optional)

Charging Current

10A

10A

Input Volt. Range

12~21V

12~21V

AC Output

220V/110V

Output Frequency

50/60Hz

Output Wave Form

Pure Sine Wave

DC Output

5V2A 12V4A 19V4A

Working Temp.

-15℃~50℃

Operation Humidity

RH45%~85%, Non-condensing

Protection Types

Over-charge, Over-discharge, Over temperature, Short circuit

protection

Display Content

DC Voltage, DC Current, Battery Remaining Capacity, Active

Power, Remaining Time

Cooling

Fan Cooling (When internal temperature is over 65℃ )

Others

LED Light (2W)

Dimension(L*H*W)

298*273*84mm

298*273*84mm

Weight

4.0kg

3.5kg

UPS

Yes

Yes
