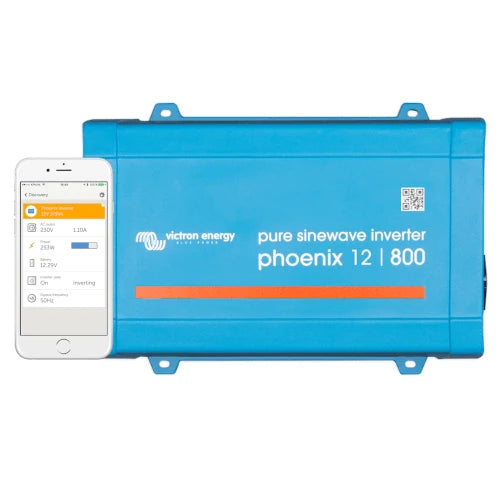

Victron Energy Phoenix Inverter VE Direct 12/800 - PIN121801400

Features of the Phoenix Inverter 12/800 VE.Direct

VE.Direct communication port

The VE.Direct port can be connected to:

A computer (VE.Direct to USB interface cable needed)

Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

Low battery voltage alarm trip and reset levels

Low battery voltage cut-off and restart levels

Dynamic cut-off: load dependent cut-off level

Output voltage 210 – 245V

Frequency 50 Hz or 60 Hz

ECO mode on/off and ECO mode sense level

Monitoring:

In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 12/800 VE.Direct are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the Phoenix Inverter 12/800 VE.Direct will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

DC connection with screw terminals

No special tools needed for installation.

Monitor, operate & control your system

VictronConnect lets you get live status information and configure your Phoenix Inverter 12/800 VE.Direct when connected to a VE.Direct Bluetooth Smart Dongle.
