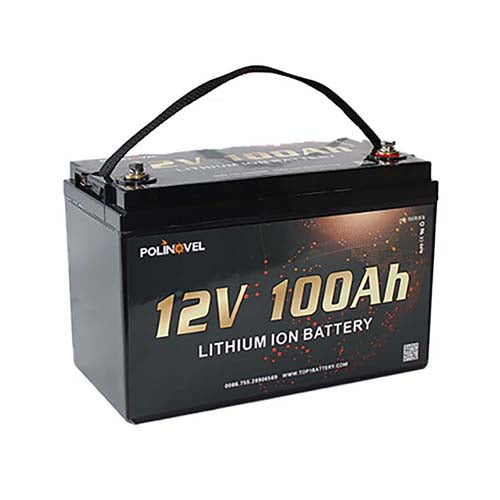

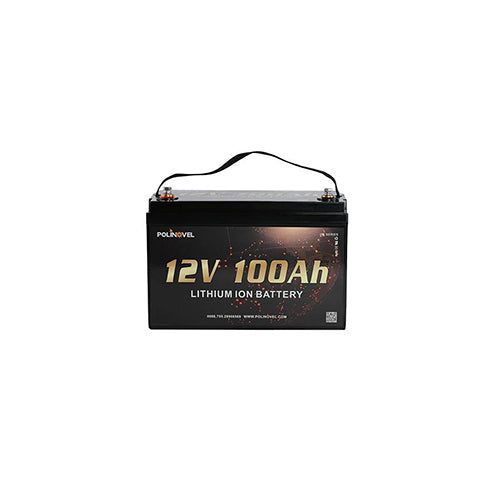

LiFePO4 HD Series Professional for high current (160Ah Continuous BMS) Lithium Battery 12V 100Ah

£825.00

Quantity

LiFePO4 HD Series Professional for high current (160Ah Continuous BMS) Lithium Battery 12V 100Ah

12V 100Ah LiFePO4 Lithium Battery (HD) Professional High Current (160Ah Continuous drain BMS)

The HD Series Professional are designed for High Usage applications such as Hybrid drives for vehicles and Boats and or where a user needs a higher current handling than the std range can provide.

Not all batteries are the same, many lower cost Lithium Batteries have a low continuous current handling of under 100Ah whilst these allow a lower cost, they are not suitable for EV or Hybrid power and or use where an inverter or any other high drain application is needed. eg any inverter of  more than 1Kw. for Example the Ultramax 12V 100Ah unit has a std current handling of just 40Ah and a maximum continuous current handling of 80Ah.  Our professional high current batteries with 160Ah BMS are designed and built to last, to deliver power above and beyond the capability of the lower cost models. This  over engineering is why we have not  seen problems with BMS Failure that is reported for some other manufacturers products, whose current handling is not sufficient for the demands placed upon batteries in typical situations with high load applications.

Deep cycle leisure battery that is ideally suited for use in power boats, sailing craft, canal boats, caravans, motor homes, RV’s,  off-road winch batteries, Land Rover winch batteries, invalid carriages, personal mobility scooters, electric vehicles at 12V, 24V,36V,48V through series connections. Electric trolling motors. Mobile Electric lift trucks, Powered  trolleys etc.

FEATURES

HD series lithium battery using LiFePO4 battery cells offer the following advantages:

◆ Longer life compared to lead acid battery more than 2000 cycle life. Guaranteed greater than 80% capacity after 2000 cycles*of 80% discharge.  (1 cycle per day = 5.4 years!) with reduced % discharge the batteries will last much longer than this, with 4000-6000+ cycles usually achieved, depending on charge discharge rates and operation temperature etc.

◆ Up to 60% weight saving

◆ 100% usable capacity (100Ah LiFePO4 approximately offers the same usable energy as a 160Ah Lead Acid battery) due to offering full voltage and current even when 80% discharged, compared to lead acid that typically only offers the required voltage at upto 50% discharged.

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging per month.

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed,  7 year warranty upto 2000 cycles.  *As determined from integral BMS. Life expectancy is much longer than this with good battery management.

◆ Fast charging, Charge at 20Amps in under 5 hours from flat with one of our high performance chargers.

◆Can be connected in series upto 4 units to make 24V, 36V or 48V 100Ah system.  Using internal BMS no other controller needed.

or

◆ Can be connected in parallel upto 4 units to make 200Ah, 300Ah or 400Ah 12V system.  Using internal BMS no other controller needed.

SPECIFICATIONS

Items Parameter
Battery Type LiFePO4
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Energy 1.28KWh
Internal Resistance ≤20mΩ
Series & Parallel Application up to 4 series 4 parallel connected application
Limited Charge Voltage 14.6±0.2V
Floating Charge Voltage 13.8±0.2V
Charge Method CC/CV
Discharge Cut-off Voltage 10.0V
Standard Charge Current 20A (100Ah max charge rate)
Max. Continuous Discharge Current (<30min) 160Ah
Pulse Discharge Current (<5s) 200-400A
Cycle Life >2000 cycles
Dimension Length: 329±2mm
Width: 172±2mm
Height: 214±2mm
Weight 15±0.2Kg
Operation Temperature Range Charge: 0~45℃;
Discharge: -20~60℃
Recommended operating temperature: 15℃~35℃
Self-Discharge Rate Residual capacity: ≤3%/month; ≤15%/years
Reversible capacity: ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range Less than 1 month: -20℃~35℃, 45%RH~75%RH
Less than 3 months: -10℃~35℃, 45%RH~75%RH
Recommended storage environment: 15℃~35℃,45%RH~75%RH



Quality standards:

CE marked tested to EU Council Directive 2014/30/EU Electromagnetic Compatibility

test std.  EN 61000-6-3: 2007+A1: 2011 EN 61000-6-1: 2007.

For most customers running an inverter Quality Source LiFePO4 batteries by POLINOVEL of similar size to lead acid,AGM etc will almost double the time you can run your inverter for.   As LiFePO4 batteries can be drained to 80-100%  of quoted capacity and will continue to deliver full voltage at much lower state of charge compared to lead acid batteries that drop voltage under heavy loads and reduce voltage progressively from  a state of charge below 50%.

The extra Usable capacity of LiFePO4 and the very long cycle life 4-8 times that of lead acid make  LiFePO4 cheaper in the long run and much more environmentally friendly.

Over their lifespan 1 x LiFePO4 100Ah battery offers the same usable energy as almost 2 lead acid 80Ah units that would need to be changed 4 x before the LiFePO4 is at 80% of its original storage capacity.  LiFePO4 is not 8 x more expensive than a good lead acid 500 cycle guaranteed battery and contains 8 x less plastic than lead acid units.

1 x LiFePO4 battery at 14.6kg  replaces 8 x 19Kg = 152kg of toxic lead and concentrated sulphuric acid during its lifetime. With associated carbon emissions to move these over their lifecycle.

Quality Source, buy well, Buy once to last.
